CONTEC ABPM50 Handheld 24hours Ambulatory Blood Pressure

CONTEC ABPM50 Handheld 24hours Ambulatory Blood Pressure Monitor With PC Software 3 Cuffs

The CONTEC ABPM50 Handheld 24hours Ambulatory Blood Pressure Monitor with PC Software and 3 Cuffs is a compact and portable device designed for monitoring blood pressure continuously and dynamically for up to 24 hours. It is based on oscillography theory and provides accurate data for diagnosis. This monitor is suitable for use in hospitals, clinics, and other medical institutions.

Key features of this product include a user-friendly interface, compatibility with adult, pediatric, and neonate patients, the ability to record up to 350 groups of ambulatory NIBP data, and a combination of automatic and manual measurement methods. The high-definition color TFT display ensures clear visibility, and the data review interface allows for easy analysis of NIBP data through features like "data list," "trend graph," and "big font." The monitor also provides low power prompts, alarms, error messages, and time display.

The device offers two unit options: mmHg and kPa, and the display interface can be switched between Chinese and English. Optional parameter alarm dispose function is available, and the monitor can be connected to a PC for data review, analysis of measured results, viewing trend graphs, and printing reports using the provided PC software.

The software features of this product include connecting to the device via USB interface, downloading NIBP measurement results, displaying scoop-shape and filling-type trend graphs, histograms, pie charts, and correlation line graphs. It also allows for editing of NIBP data, adding annotations, and editing basic information, doctor's advice, NIBP status instructions, and current medicine-taken information. The software supports report printing and print preview.

In terms of performance, the NIBP measurement method is oscillometry, and the measure mode is the upper arm measure. The automatic measure interval can be set to 15, 30, 60, 120, or 240 minutes. The measure range for pressure is 0kPa (0mmHg) to 38.67kPa (290mmHg), with a resolution of 1mmHg and an accuracy of ±3mmHg. The alarm parameters include SYS and DIA. The monitor features automatic inflation by force pump and automatic multistep deflation. The PR measure range is 40bpm to 240bpm, with a resolution of 1bpm.

In terms of safety, the monitor is powered by DC 3V (2×1.5V AA alkaline dry battery) and is classified as an internally powered device with type BF applied part with defibrillation protection. The package includes cuffs for adult, large adult, and child patients, a user manual, a USB data line, and a pack.

The physical characteristics of this monitor are as follows: it has dimensions of 128mm(L) × 69mm(W) × 36mm(H) without packaging, and it weighs

Introduction

ABPM50 is a handhold ambulatory blood pressure monitor, which is designed according to oscillography theory. The device could monitor human body blood pressure up to 24 hours continuously and dynamically, providing accurate basis for the diagnosis. It is applicable for using in hospital, clinic and other medical institutions.

Product features:
1)Compact and portable, user-friend interface, easy to use
2)Patient range: adult, pediatric, neonate
3)24 hours ambulatory NIBP monitoring function, up to 350 groups of ambulatory NIBP data can be recorded for once.
4)Perfect combination of automatic and manual measurement method, up to 300 groups of data can be recorded for once by manual measure.
5)High-definition color TFT display, strong visibility
6)By data review interface such as "data list","trend graph","big font", NIBP data is clear at a glance
7)Display of low power prompt, alarm, error message and time
8)Supply two kinds of unit: mmHg / kPa
9)Display interface can be switched between Chinese and English
10)Parameter alarm dispose function is optional
11)Communicate with PC, PC software can achieve data review, measured results analysis, view of trend graph, reports printing and other functions
Software features:
1）Connect to the device by USB interface.
2）Download NIBP measure result from the terminal device.
3）Display of scoop-shape trend graph, filling-type trend graph, histogram, pie chart, correlation line graph.
4）Edit every piece of NIBP data, and add annotation to it.
5）Edit basic information, doctor's advice, NIBP status instruction, current medicine-taken information, etc.
6）Support report printing and print preview.

Performance

NIBP:

• Measure Method: Oscillometry
• Measure Mode: The upper arm measure
• Automatic Measure Interval: 15, 30, 60, 120, 240 minutes
• Measure range: Pressure:0kPa (0mmHg)~38.67kPa (290mmHg)
• Resolution: 1mmHg
• Accuracy: ±3mmHg
• Alarm parameter: SYS, DIA
• Inflation: automatic inflation by force pump
• Deflation: automatic multistep deflation
• PR:
• Measure range: 40bpm～240bpm
• Resolution:1bpm

Safety:

• Power supply: DC 3V (2×1.5V AA alkaline dry battery)
• Safety type: internally powered device, type BF applied part with defibrillation protection
• Accessories

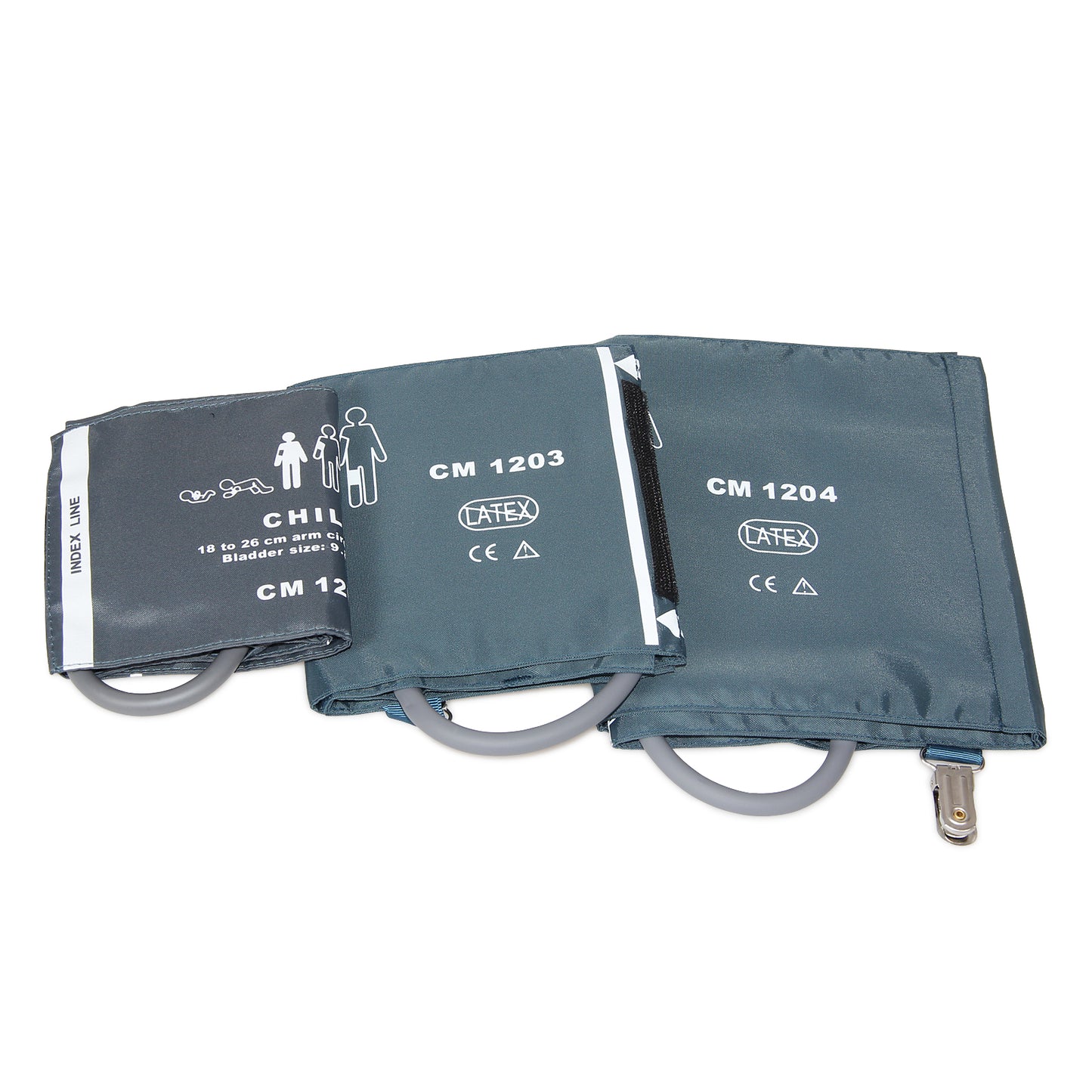

• Cuff for adult 1pc
• Cuff for large adult 1pc
• Cuff for child 1pc
• User manual 1pc
• USB data line 1pc
• Pack 1pc

Physical characteristic

Dimension: 128mm(L) ×69mm(W) × 36mm(H) (without packaging)
Weight: <300 g (with battery)
Operational environment
Temperature: 5 ˚C～40 ˚C
Relative humidity: 15%～80%
Atmospheric pressure: 700hPa～1060hPa
Specific EMC, climate, mechanical environment: Do not use a mobile phone in the vicinity of the device, for the strong radiation field produced by mobile phone would interfere with the normal function of use.
Storage environment:
Temperature: -20˚C ~ +55 ˚C
Relative humidity: ≤95 %
Specific EMC, climate, mechanical environment: The device after packaged should be stored in a environment of -20℃～+55℃, relative humidity no more than 95%, and well-ventilated room with no corrosive gas. Strong shock, vibration and snow and rain should be avoided during transportation.
