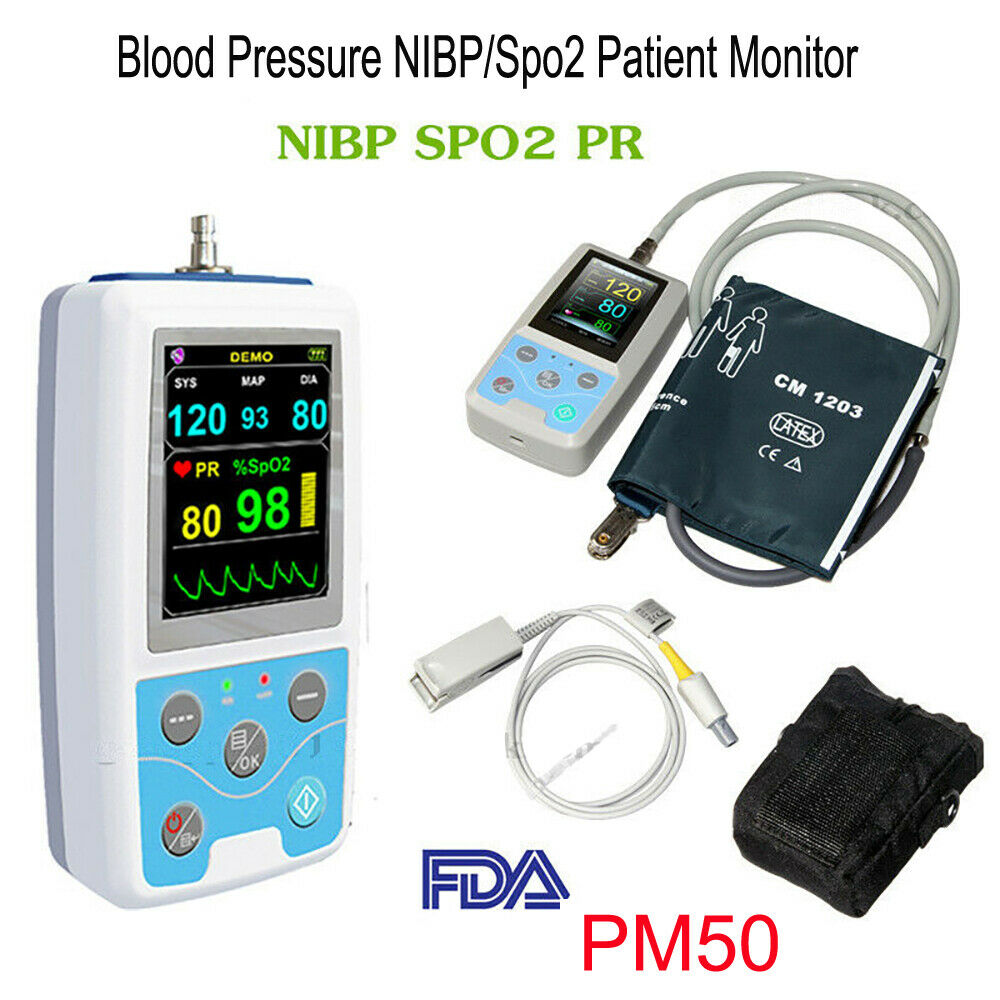

CONTEC PM50 24 Hours Ambulatory Blood Pressure Monitor

CONTEC PM50 24 Hours Ambulatory Blood Pressure Monitor SPO2 Probe Pulse Rate NIBP Recorder Software USB Data Store

The CONTEC PM50 24 Hours Ambulatory Blood Pressure Monitor is a compact and portable device that allows for easy monitoring of blood pressure and SpO2 levels. It is suitable for use in hospital wards, community clinics, and other medical institutions.

This multi-functional patient monitor features an integrative SpO2 probe and offers double working modes. It can be used for both monitoring functions and 24 hours ambulatory NIBP measurement. The device allows for long-time monitoring of blood pressure and SpO2 levels, displaying accurate values for both.

With its large data storage capacity, the PM50 can record NIBP and SpO2 data for a large number of patients. The user-friendly interface allows for easy navigation of the menu and review of measurement results. The device also provides information on low power, alarms, errors, and time, ensuring that the user is well-informed.

Parameter alarms can be set as per the user's requirements, and patient information can be easily configured. The PM50 also offers case management functionality, allowing for data review, analysis of measurement results, trend viewing, and report printing through the PC software. The device can transmit data between the device and computer, enabling the upload of patient information and download of measurement data.

The master device software provides additional features such as setting patient information, editing and supervising up to 1000 patient cases, and a 48-hour time segment for dealing with NIBP data. The software can be connected to the device via USB interface, allowing for the upload and download of data. It also offers various graph types for data visualization and editing options for adding annotations. The software supports print preview and report printing for easy documentation.

The performance of the PM50 is exceptional. The NIBP measurement method is oscillometry, and it can measure blood pressure in the range of SYS 40mmHg to 270mmHg, MAP 20mmHg to 235mmHg, and DIA 10mmHg to 215mmHg. The automatic measurement interval can be set from 5 to 120 minutes. The resolution is 1mmHg, and the accuracy is ±3mmHg. The device has an increasing pressure mode and a reducing pressure mode. The SpO2 measurement range is 0% to 100%, with a resolution of 1% and an accuracy of ±2%. The pulse rate measurement range is 30bpm to 250bpm, with a resolution of 1bpm and an accuracy of ±2 bpm or ±2%.

The PM50 features a 2.4" TFT color LCD display for easy reading of measurements. It is powered by two AA batteries and is designed with safety in mind, meeting the requirements of Type BF application part (Internally powered, defibrillator protected).

Included with the PM50 are a cuff for adults, an integrative SpO2 probe, a USB data line, a pouch, and a user manual. The dimensions of the device are 128*69*36 mm (excluding packaging), and it has a lightweight design for easy portability.

In conclusion, the CONTEC PM50 24 Hours Ambulatory Blood Pressure Monitor is a versatile and reliable device that allows for the simultaneous monitoring of blood pressure and SpO2 levels. With its user-friendly interface and advanced software capabilities, it is suitable for use in various medical settings.

Introduction
PM50 is a multi-functional patient monitor that can monitor BP and SpO2 at the same time. Realizing long time monitoring of dynamic blood pressure, the device is widely applicable to hospital wards, community clinics and other medical institutions.

Functions
Features:
1)Compact and portable, easy to use.
2)With Integrative SpO2 Probe.
3)Double working modes,monitoring function and 24 hours ambulatory NIBP measurement function can be flexibly set.
4)Long time monitoring BP and SpO2, displaying value of BP, SpO2 and PR.
5)NIBP and SpO2 data Record for large capacity.
6)With friendly user interface, the user can see list menu and review measurement results.
7)The device can display low power information, alarm information, error information and time information richly.
8)Parameter alarms function is optional.
9)Patient information can be flexibly set.
10)Case management function.PC software can achieve data review, analysis measurement results, seeing trend, printing reports and other functions.
11)Data can be transmitted between device and computer, such as upload patient information, download measurement data.
12)English and Chinese menu.
Function of master device software:
1）Set patient information through PC software.
2）Up to 1000 patients cases can be edited and supervised.
3）The time segment of dealing with the patient’s NIBP data is 48 hours.
4）Connect the device by USB interface.
5）Can upload patient information data collection project and download collection data.
6）Can display scoop-shape trend graph,filling-type trend graph, histogram, pie chart, correlation line graph.
7）Can edit every piece of data, and add annotation to it.
8）Can edit basic information,doctor's advice information, NIBP and SpO2 status instruction, current medicine-taken information, etc.
9）Support print preview,print the report.

Performance

NIBP：
Measurement Method: Oscillometry
Measurement Mode: The upper arm measure
Measuring range:
SYS 40mmHg～270mmHg
MAP 20mmHg～235mmHg
DIA 10mmHg～215mmHg
Automatic Measurement Interval: 5.10.15.20.30.45.60.90.120 minutes
Resolution: 1mmHg
Accuracy: ±3mmHg
Increasing pressure mode: force pump increases pressure automatically
Reducing pressure mode: self-motion ladder reducing pressure mode
Alarm parameter: SYS / DIA
SpO2:
Measuring range: 0%～100%
Resolution:1%
Accuracy: 70-100%, ±2%, below 70% unspecified
Error in Weak Filling Condition:SpO2 and pulse rate can be shown correctly when pulse-filling ratio is 0.4%. SpO2 error is ±4%, pulse rate error is ±2 bpm or ±2% (select larger).
Resistance to surrounding light:The deviation between the value measured in the condition of man-made light or indoor natural light and that of darkroom is less than ±1%.
Pulse Rate:
Measuring range:30bpm~250bpm
Resolution:1bpm
Accuracy: ±2 bpm or ±2% (select larger)
Display:
2.4" TFT colour LCD
Safety:
Power: DC 3V（Two "AA",1.5V Alkali Battery）
Product safety type:Type BF application part (Internally powered,defibrillator protected)

Accessories

cuff for adult
Integrative SpO2 Probe
USB data line
Pouch
User manual

Physical characteristic

• Dimension: 128*69*36 mm (No including Packing)
• Weight: <350g (Including Batteries)
• Working environment:
• Temperature：5 ˚C～40 ˚C
• Relative humidity：≤80%
• Altitude：-500 to 4,600m (-1,600 to 15,000ft)
• Specific EMC, climate, mechanical environment: Do not use a mobile phone in the vicinity of the patient monitor for the strong radiation field produced by mobile phone would interfere with the normal function of the patient monitor use.
• Storage environment:
• Temperature： -20˚C ~ 60 ˚C
• Relative humidity： ≤95 %
• Altitude：-500 to 13,100m (-1,600 to 43,000ft)
• Specific EMC, climate, mechanical environment: The patient monitor after packaged should be stored in a well-ventilated room with no corrosive gas. Strong shock, vibration and snow and rain should be avoided during transportation.
