Pocket Fetal Doppler Digits Curve Display Pregnancy Baby Heart Rate Monitor,3Mhz Pink

Pocket Fetal Doppler Digits Curve Display Pregnancy Baby Heart Rate Monitor,3Mhz Pink


Shipping from USA

The CONTEC10A Pocket Fetal Doppler is a handheld device that uses Doppler technology to detect fetal heart rates. This compact and easy-to-use device is designed for daily self-checks by pregnant women, allowing for early monitoring and care for both the mother and baby.

Featuring a beautiful appearance and a color display screen, the Pocket Fetal Doppler is not only functional but also aesthetically pleasing. The device offers both digits and curve display options, allowing for easy interpretation of the measured FHR value and waveform. The battery level indication ensures that you never run out of power during use, and the auto shutdown feature conserves battery life by turning off the device after 60 seconds of no signal input.

The high sensitive Doppler probe of the Pocket Fetal Doppler allows for clear detection of fetal heart sounds for pregnancies more than 12 weeks along. The device offers two sound output modes: a built-in speaker and an external headphone, allowing for flexibility and privacy during use.

In terms of performance, the Pocket Fetal Doppler is classified as internally powered equipment, with a safety classification of type CF applied part. The device features a 1.77-inch LCD screen for easy reading of FHR measurements, which range from 50 BPM to 240 BPM (BPM: beats per minute). The resolution of the device is 1 BPM, ensuring accurate and precise measurements. The device operates on two 1.5V batteries (AA LR6) and has a rated working voltage of DC3V.

The probe of the Pocket Fetal Doppler has a nominal frequency of 3.0 MHz and a working frequency of 3.0 MHz ± 10%. It has a negative peak sound pressure of P_ ＜ 1 MPa and an output beam intensity of Iob ＜ 20 mW/cm2. The spatial-peak temporal-average derived intensity is Ispta ＜ 100 mW/cm2, and the ultrasonic output power is P ＜ 20 mW. The working mode of the probe is continuous wave Doppler, and the effective radiating area of the transducer is ≤ 208 mm2.

The Pocket Fetal Doppler comes with a user manual for easy and proper use. It weighs approximately 207g with batteries and has dimensions of 157mm(L) × 99mm(W) × 27mm(H). The device is CE and FDA certified, ensuring its safety and quality.

Overall, the CONTEC10A Pocket Fetal Doppler is a reliable and convenient device for monitoring fetal heart rates during pregnancy. With its easy operation, compact design, and clear sound output, it provides expectant mothers with peace of mind and the ability to monitor their baby's health at home or in a medical setting.

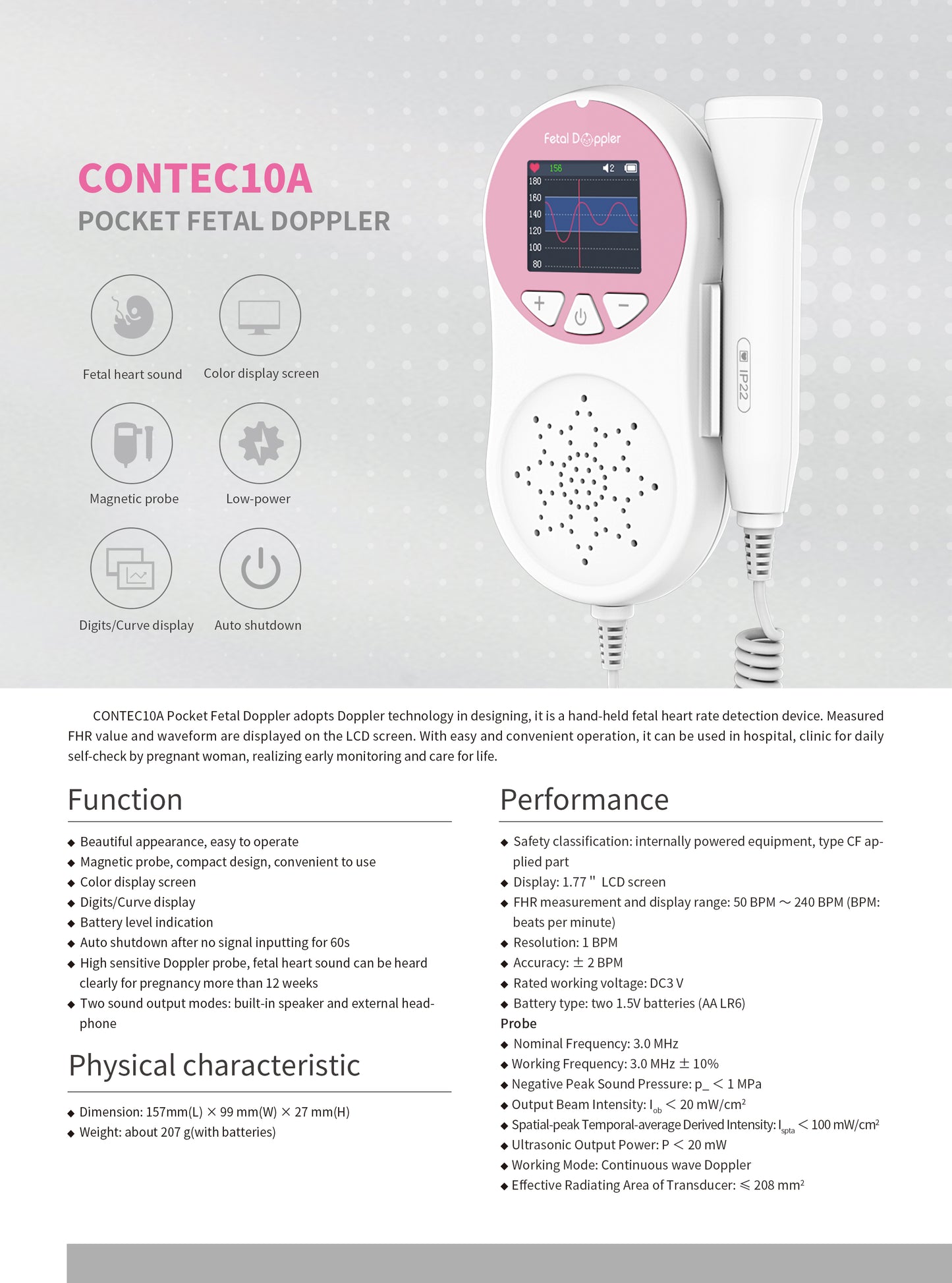

Introduction

CONTEC10A Pocket Fetal Doppler adopts Doppler technology in designing, it is a hand-held fetal heart rate detection device. Measured FHR value and waveform are displayed on the LCD screen. With easy and convenient operation, it can be used in hospital, clinic for daily self-check by pregnant woman, realizing early monitoring and care for life.

Function

• Beautiful appearance, easy to operate
• Magnetic probe, compact design, convenient to use
• Color display screen
• Digits/Curve display
• Battery level indication
• Auto shutdown after no signal inputting for 60s
• High sensitive Doppler probe, fetal heart sound can be heard clearly for pregnancy more than 12 weeks
• Two sound output modes: built-in speaker and external headphone

Performance

• Safety classification: internally powered equipment, type CF applied part
• Display: 1.77＂ LCD screen
• FHR measurement and display range: 50 BPM ～ 240 BPM (BPM: beats per minute)
• Resolution: 1 BPM
• Accuracy: ± 2 BPM
• Rated working voltage: DC3 V
• Battery type: two 1.5V batteries (AA LR6)
• Probe
• Nominal Frequency: 3.0 MHz
• Working Frequency: 3.0 MHz ± 10％
• Negative Peak Sound Pressure: P_ ＜ 1 MPa
• Output Beam Intensity: Iob ＜ 20 mW/cm2
• Spatial-peak Temporal-average Derived Intensity: Ispta ＜ 100 mW/cm2
• Ultrasonic Output Power: P ＜ 20 mW
• Working Mode: Continuous wave Doppler
• Effective Radiating Area of Transducer: ≤ 208 mm2

• Accessories
• User Manual 1pc
• Physical characteristic
• Dimension: 157mm(L) × 99 mm(W) × 27 mm(H)
• Weight: about 207 g(with batteries)
• Certification
• CE , FDA
